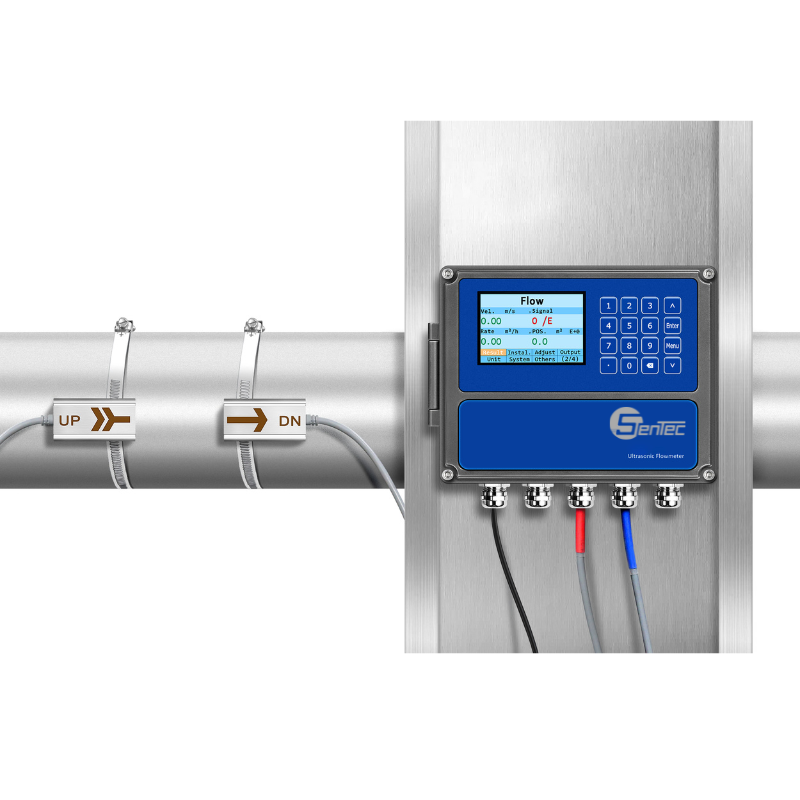

FHS330 Clamp On Ultrasonic Flowmeter/Heat Meter

FHS330 is a wall-mount, clamp-on type ultrasonic flowmeter which use the transfer time technology. Clamp on type ultrasonic flowmeter is easy to install and no need to cut off the pipe, that saves you lots of troubles and cost. At the same time, It has our unique calculate software to ensure the high accuracy and low velocity response.

FHS330 is a wall-mount, clamp-on type ultrasonic flowmeter which use the transfer time technology. Clamp on type ultrasonic flowmeter is easy to install and no need to cut off the pipe, that saves you lots of troubles and cost. At the same time, It has our unique calculate software to ensure the high accuracy and low velocity response.
FHS330 flowmeter could add the RTD model and temperature sensor become an energy meter to monitoring the energy use, help to save the energy.

Parameters

Flow range±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s)
Accuracy±0.5% of measured value
Repeatability0.1% of measured value
Linearity±0.5%
Pipe sizeDN25mm~DN5000mm(A pair of sensors)


Outputs

Analog output: 4~20mA, max load 750Ω .

Pulse output: 0~9999Hz, OCT (min. and Max. frequency is adjustable)

Relay output: SPST, Max 1Hz(1A@125VAC or 2A@30VDC)

CommunicationRS232/RS485 Modbus
Power supply10~36VDC/AC90~245V
Display240*128 backlit LCD






Temperature

Transmitter: -14℉~140℉(-20℃~60℃)

Transducer: -40℉~176℉(-40℃~80℃,TT01)

Transducer: -40℉~266℉(-40℃~130℃,TT03)

Transducer: -40℉~356℉(-40℃~180℃,TT02H)

HumidityUp to 99% RH,non-condensing
TransmitterPC+ABS,IP65


Transducer

Encapsulated design,IP68

Double-shielded transducer cable

Standard/maximum cable length:30ft/1000ft(9m/300m)
