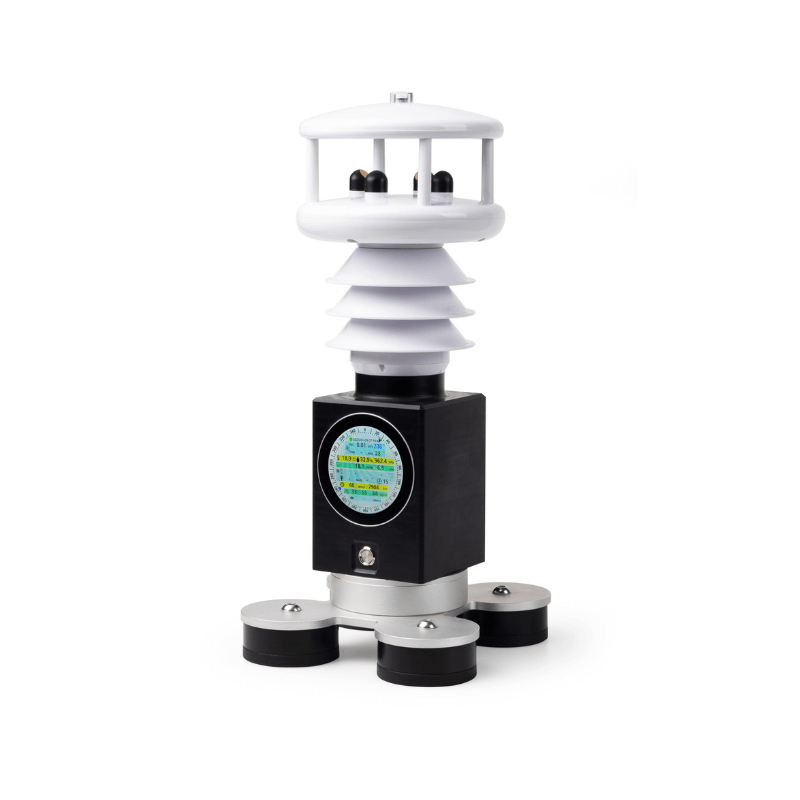

SEM8000 Vehicle-mounted integrated ultrasonic weather station

SEM8000 vehicle-mounted automatic weather station is a professional-grade vehicle-mounted automatic weather station sensor independently developed by our company that can measure multi-element meteorological parameters. It also measures six major meteorological elements including atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and rainfall.

SEM8000 vehicle-mounted automatic weather station is a professional-grade vehicle-mounted automatic weather station sensor independently developed by our company that can measure multi-element meteorological parameters. It also measures six major meteorological elements including atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and rainfall.  And real-time display of the six-element data on site, which is characterized by high integration, high detection accuracy, and fast response time. Two high-strength magnets (rubber wrapped) are installed at the bottom of the automatic weather station, which can be easily attached to the top of the car. A rechargeable lithium battery and a wireless Bluetooth data transmission module are built in the bottom of the automatic weather station. The weather station detection data can be sent to the mobile phone APP in real time, or it can be received through a laptop. The vehicle-mounted weather station receiving software displays and stores the data sent by the weather station. . The total weight of the vehicle-mounted automatic weather station is only 1.8kg, and it is equipped with a special instrument box, which is very light to carry. It is very simple and convenient to use.

Parameters

ITEMS

Principle

Range

Accuracy

Resolution

Wind speed

Ultrasonic

0-60m /s

± 2%

0.1m/s

Wind direction

Ultrasonic

0-359 °

±3 °

1 °

Temperature

MEMS sensor

– 40 ℃ – + 80 ℃

± 0.5℃

0.1 ℃

Humidity

MEMS sensor

0-100%

±5%

1%

Atmospheric pressure

MEMS sensor

150 - 1100hPa

±1hpa

0.1hPa

Precipitation (Rain)

Radar

0-100mm/hr

±5%

0.1mm

Digital output

Bluetooth

Power supply

12VDC Built-in rechargeable lithium battery last for4 hours

IP protection

IP65

Operating environment

-40℃ – +70℃,0 – 100%

Communication

ModBus,NMEA-0183,ASCII

Size

150*110*320mm

Material

ABS engineering plastics/aluminum alloy

Power Consumption

185mA@12V(heating off)

With compass and GPS integrated, output real-time relative wind speed, direction as well as true wind speed and direction, compass heading, GPS speed.
