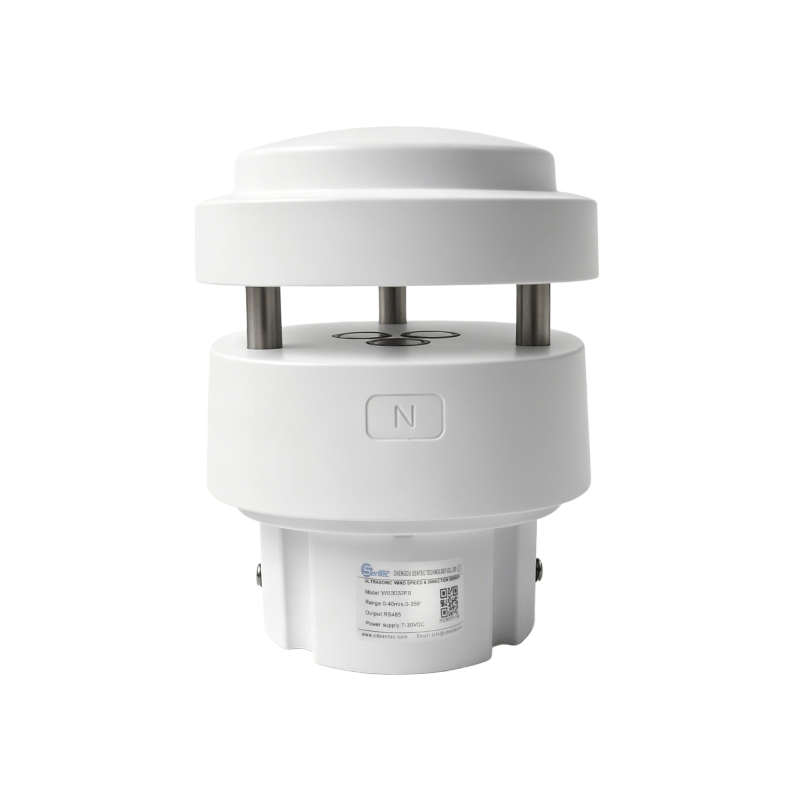

WS3032F Mini ultrasonic wind speed and direction sensor

WS3032F Mini ultrasonic wind speed and direction sensor

WS3032F Mini ultrasonic wind speed and direction sensor is a measuring instrument that uses the time difference of ultrasonic wave propagation in the air to measure wind speed and direction. Compared with the traditional mechanical wind speed and direction indicator, it has the characteristics of small wear, long service life and fast corresponding speed. It can be widely used in urban environmental monitoring, wind power generation, meteorological monitoring, bridges and tunnels, navigation ships, aviation airports and other fields. No maintenance and field calibration required.

Category
GET A QUOTE

WS3032F Mini ultrasonic wind speed and direction sensor is a measuring instrument that uses the time difference of ultrasonic wave propagation in the air to measure wind speed and direction. Compared with the traditional mechanical wind speed and direction indicator, it has the characteristics of small wear, long service life and fast corresponding speed. It can be widely used in urban environmental monitoring, wind power generation, meteorological monitoring, bridges and tunnels, navigation ships, aviation airports and other fields. No maintenance and field calibration required.

Parameters

ITEMS

Sampling frequency

Range

Accuracy Resolution

Wind speed

10Hz

0-40m /s

±(0.5+0.05V)M/S

0.01m/s

Wind direction

10Hz

0-359.9 °

± 5 ° (wind speed < 10M/S)

0.1°

Digital output

The standard product is RS485 interface, ModbusRTU; Customizable SDI-12

Power supply

VDC: 9V-24V

IP protection

IP65

Working temperature

-30°C – +70°C

Maximum output frequency

Passive mode: 1/S Active mode: 1/min

Fixing method

Default fixed by sleeve (Flange fixing or bending plate fixing optional)

Fixing bracket

None for standard products, 1.5m and 1.8m brackets are optional

Cable

Default 3m cable (other length optional)

Remark

Wind speed and direction: measure the wind speed and direction through ultrasonic principle, and output instantaneous wind speed, instantaneous wind direction, average wind speed, average wind direction and other data.
