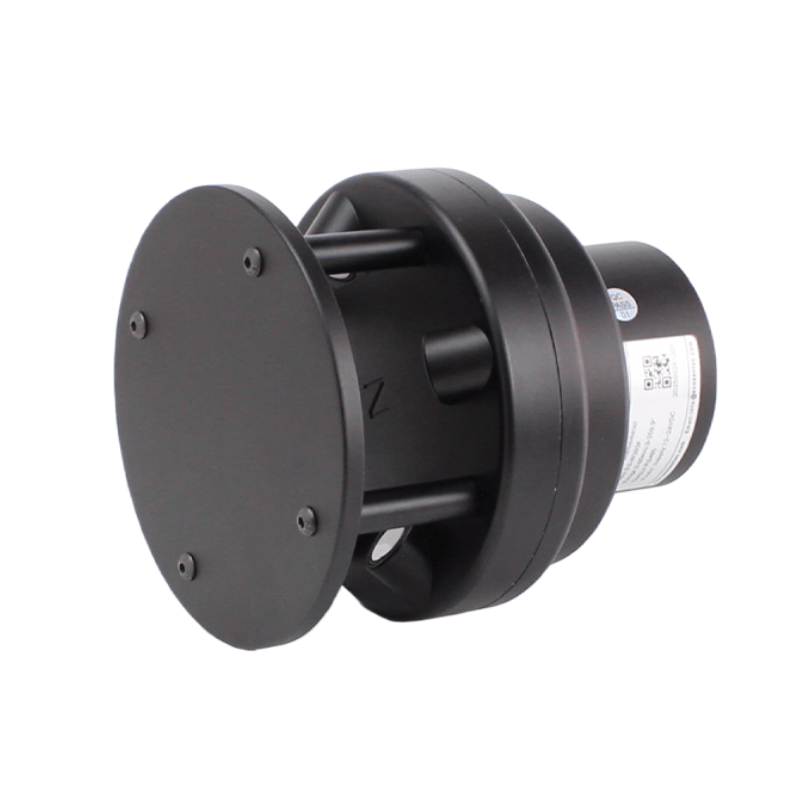

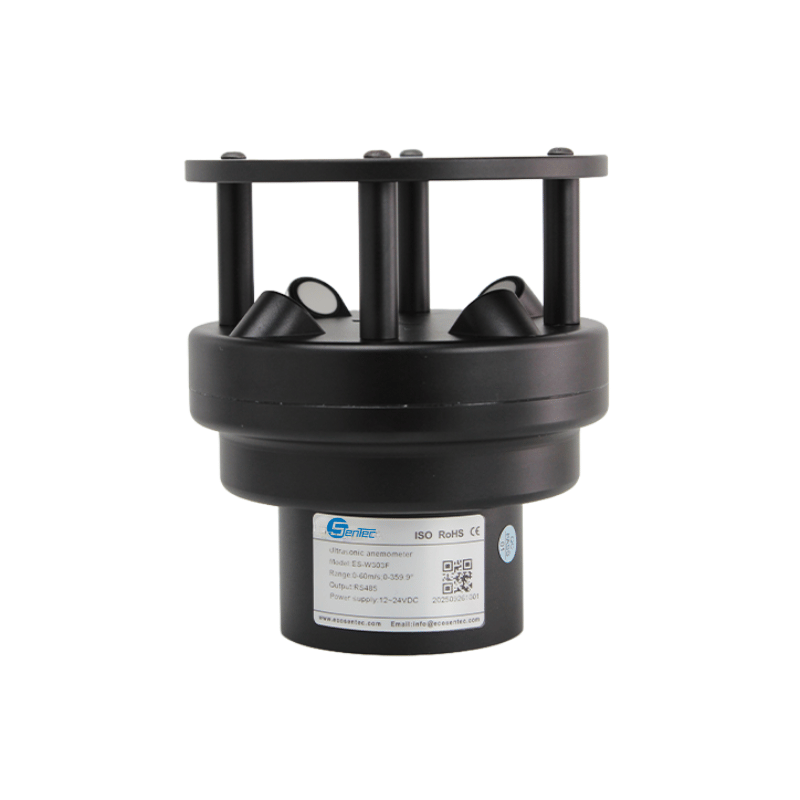

WS303F Ultrasonic anemometer

WS303F Ultrasonic anemometer is a measuring instrument that uses the time difference of ultrasonic wave propagation in the air to measure the wind speed and direction. Compared with the traditional mechanical anemometer, it has the characteristics of small wear, long service life and fast response. It can be widely used in urban environmental monitoring, wind power generation, meteorological monitoring, bridges and tunnels, navigation ships, aviation airports and other fields. No maintenance and field calibration required.

WS303F Ultrasonic anemometer is a measuring instrument that uses the time difference of ultrasonic wave propagation in the air to measure the wind speed and direction. Compared with the traditional mechanical anemometer, it has the characteristics of small wear, long service life and fast response. It can be widely used in urban environmental monitoring, wind power generation, meteorological monitoring, bridges and tunnels, navigation ships, aviation airports and other fields. No maintenance and field calibration required.

Parameters

ITEMS

Sampling frequency

Range

Accuracy Resolution

Wind speed

4Hz

0-60m /s

±(0.3+0.03V)m/s; V≤30m/s ±(0.3+0.05V)m/s; V ≥ 30m/

s (V =wind tunnel standard wind speed value)

0.01m/s

Wind direction

4Hz

0-359.9 °

± 5 ° (wind speed < 10M/S)

0.1°

Digital output

The standard product is RS485 interface, ModbusRTU; Customizable SDI-12

Power supply

VDC: 9V-24V

IP protection

IP65

Working temperature

-40°C – +80°C

Maximum output frequency

Passive mode: 1/S Active mode: 1/min

Fixing method

Default fixed by sleeve (Flange fixing or bending plate fixing optional)

Fixing bracket

None for standard products, 1.5m and 1.8m brackets are optional

Cable

Default 3m cable (other length optional)

Customized functions

NMEA protocol, ASCII (ASCII compatible with Vaisala), CAN interface (ASCII), tilt angle/ electronic compass, heating function

Remark

1. Supplementary description of wind speed and direction parameters: the wind speed and direction can be measured by ultrasonic principle, and the instantaneous wind speed, instantaneous wind direction, average wind speed, average wind direction and other data can also be output. The optional electronic compass is used to measure the apparent wind speed and direction data, and the GPS is used to calculate the real wind speed and direction.
