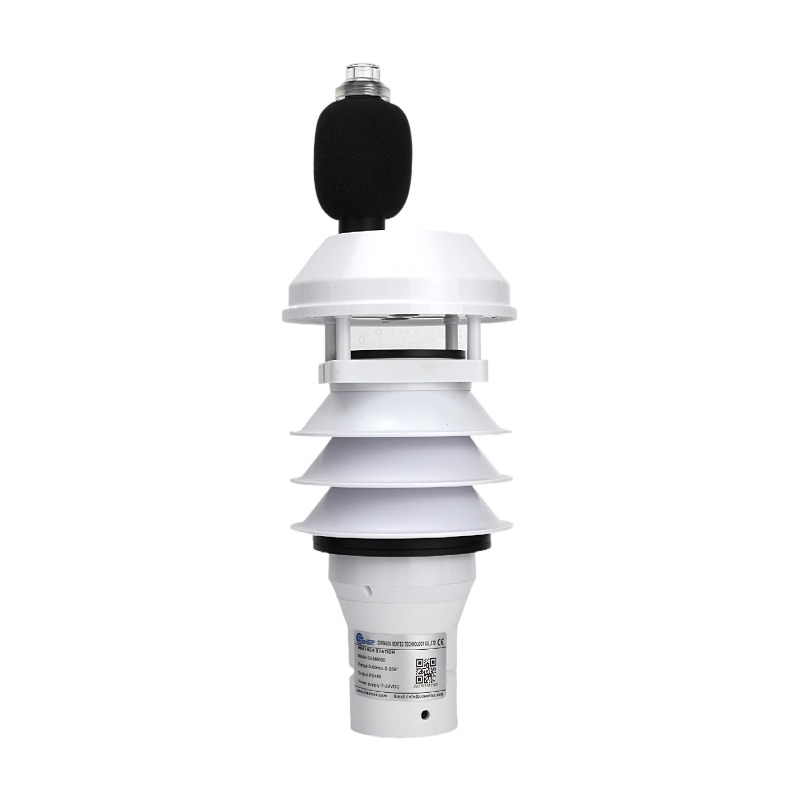

SEM9600 Micro automatic meteorological station

SEM9600 small automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters. It can simultaneously measure atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall, radiation, illuminance, UV radiation, and visibility. , environmental noise, PM2.5 and PM10 and other meteorological elements

SEM9600 small automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters. It can simultaneously measure atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall, radiation, illuminance, UV radiation, and visibility. , environmental noise, PM2.5 and PM10 and other meteorological elements.

SEM9600 uses low-power chips inside. It can also be equipped with a MINI visibility detection module, which is very suitable for the use of smart city control systems.

Parameters

ITEMS

Range

Accuracy

Resolution

Wind speed

0-70m /s

± 3%

0.1

Wind direction

0-359 °

±3 °

1 °

Temperature

– 40 ℃ – + 80 ℃

± 0.5℃

0.1 ℃

Humidity

0-100%

±3%

1

Atmospheric pressure

300- 1100hPa

±1

0.1hPa

Rainfall*

0-200mm/hr

±5%

0.1mm

Altitude*

-500m ~ 9000m

±8%

1m

Radiation*

0-2000 W/m2

±5%

0.1 W/m2

Illuminance*

0-200000lux

±5%

0.1 lux

UV radiation*

0-2000 W/m2

±5%

0.1 W/m2

PM2.5/PM10*

0-2000μg/m3

±5%

1μg/m3

UV Radiation*

0-2000 W/m2

±10%

1μW/cm2

Visibility*

10~3000m

±15%

1m

Noise*

30~130dB

±3dB

0.1dB

Digital output

RS232, RS485, SDI-12

Power supply

VDC: 7-30V / (0.1-0.7)W

Operate temperature Humidity

-20℃ – +50℃  /  0 – 100%

IP protection

IP65

Baut rate

4800 – 19200

Communication

ModBus,NMEA-0183,ASCII

Size

Φ110mm×(217-297)mm  /  0.38kg

Material

White/ASA
